UTV

07-28-2010

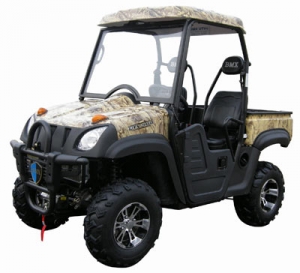

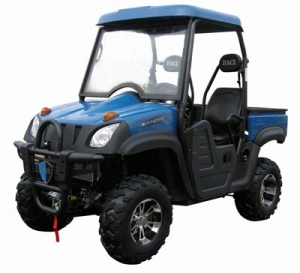

I still have two New BMX UTV's left in stock that have not been spoken for with the new Factory upgrades. I may also have a few units in the shipment next week that I can sell at the same listed price. They are 2010 model 500cc BMX UTV 4x4, with all the 2011 factory upgrades; New HALF DOOR, New Style SHIFTER, New Style SEAT & new upgraded TIRES! Price increase will be the only change on the 2011 models that come out in August. MSRP: is $14,950.00 on the 2-seater UTV's, with all the options, but our wholesale ride and drive price on these units are only- $6,884.00. I have a Maple Leaf as pictured, and a Silver. I have other colors coming in on the next shipment. I can email you pictures of other colors if you call or email me at the number and address at the bottom of this listing. Compare the BMX UTV to other brands and you'll be impressed with quality and standard equipment that comes on the BMX 500 UTV. See specs below.

Engine: 500cc single cylinder, 4-Stroke, Water Cooled. This engine is made by CFMOTO. This engine is one of the most reliable 500cc engines to ever be put into production. All Engine Parts are compatible with Honda® engines. * TRADEMARK is a trademark of Honda USA

Transmission: Automatic CVT (continuously variable transmission) with Shaft Drive, This automatic transmission means no manual shifting and no clutch.

4 Wheel Drive: with 2WD and 4WD Locking Differentials. There is a 4WD indicator light on the dashboard as well as a switch for the 4WD.
o Maximum Speed: 43 mph (actual factory spec)
o Power: 32.6 HP (actual factory spec)
o Turning Radius: 145 inches (12 foot)
o Starter: Keyed electric start and recoil starter
o Battery: 12 Volt
o Fuses and Control box: are located under the passenger side dashboard for easy access to change and replace fuses.
o Steering: Rack and Pinion steering for effortless steering.
o Suspension: Independent Suspension
§ Front: Hydraulic Shocks, adjustable shocks allow driver to adjust dampening to match for specific driving conditions.

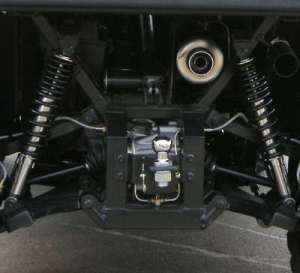

§ Rear: Independent Rear Suspension: Dual Rear Hydraulic Shocks on both the left rear and right rear (total of 4); adjustable shocks allow driver to adjust dampening to match for specific driving conditions.
o Brakes: 4 Wheel Disc Brakes: Stopping at any speed will not be a problem
o Tires: Polished Alloy Rims
§ Front: 25"x 8"x12" (Outside Diameter x Width x Inside Diameter)
§ Rear: 25"x 10"x12" (Outside Diameter x Width x Inside Diameter)
o Fuel: Regular Unleaded Gasoline.
o 11 Gauge Steel Frame: All BMX 500 quads use tubular frames with a powder-coated finish.
o Floorboard and Kickboard: The floorboard has a metal base with a strong plastic cover to keep the metal from rusting. Extremely durable.
o Fuel Capacity: 5.8 Gallons (actual factory spec). Steel gas tank, not plastic. Many of the brands use plastic to save cost.
o Ground Clearance: Measurements listed below from several points on the unit
§ Under Front Bumper = 10.5”
§ Underside between Front Wheels = 12”
§ Under Rear End and Rear Support = 9”
§ Under Rear Hitch = 14”

o Dimensions: 105.5" x 48.5" x 78" (length x width x height). The length is from the front bumper to the back of the rear tires. The 53.5" width is the widest measurement from outside of wheel well to outside of wheel well. If you include the side view mirrors it is 55" wide. If
you need to get through a narrow door opening, it is easy to remove the side mirrors.
o Box Dimensions: 92.5 x 52 x 48.5 (Box Length x Box Width x Box Height)
o Wheel Base: 71" (distance from front to back axle) New shorter wheel base!
o Wheel Span: front=41.6", rear=42.1" (front wheel span is the distance between the two front tires)
o Unit Weight: 1212 pounds, Weight in Packaging=1320 pounds.
o Max. Weight Capacity: 2200 pounds (including cargo and driver and passenger).
o Dashboard – 2-Speed Windshield Wipers, High and Low Headlights, Dashboard Lighting Switch, Hazards, Blinkers, 2WD / 4WD switch Speedometer, Odometer, & Engine Temperature and Fuel gauge.
o Radio (FM only) and MP3 Player
o Rear Electric Dump Bed (controlled by switch on dashboard). Screw Driven which is easier maintenance than hydraulic.
o Built in Tow Ball: for pulling heavy loads. Towing capacity is 660 pounds. Located on the rear on the unit, the tow ball is easy to remove to fit any of your own tow balls for such accessories as plows, lawn mowers and trailers. The Tow Ball that comes with the
500cc UTV is 1 ¾ inches.

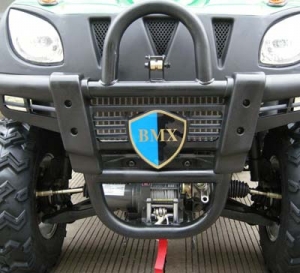

o Power Winch - 3000 pound. This Winch can be used to pull another utv out of the mud (usually less than 1000 pounds) or it can be used to pull this utv out of the mud. Cable length is 46 feet. Also the engine on this UTV is mounted towards the mid-back which
puts more weight over the back wheels for better traction. On this particular model we have put an extra-large hook to make the tougher jobs a little easier.
o Parts: Many of the drive train parts may be obtained from your local Honda Dealer.
o FACTORY WARRANTY!

Please call: 320-292-9061 or email me at: dwfimrite@msn.com.
Thanks, Dave.
